Thông số kỹ thuật:

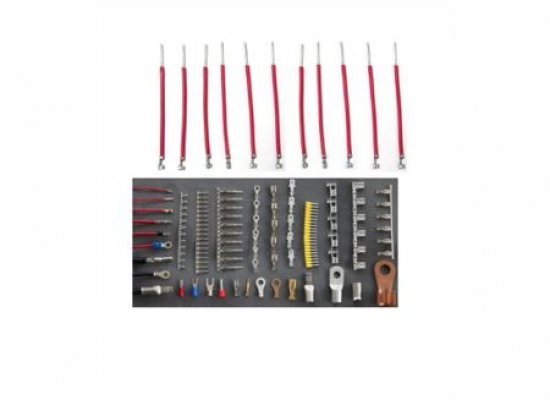

Both-side cut, strip, one-side crimp, one-side twist & solder

Size:  720*850*1650(MM)

Weight:  265KG

Display: Color touch-screen

Running way:

Automatic run + manual run

Blade adjust: electromotion adjustment

Blade material: high-speed steel

Air parts: Airtak and SMC

cutting length: more than 30mm

Cutting tolerance: 1mm+cut lengh*0.2%

Strip length:

L=10MM /R=1.5-10MM

Twisting length: 4-13MM

Solder length: 0-13MM

Applicable wire size: AWG18#-28#

Cut speed:

4300pcs/hour (length less than 100MM)

Produce speed: 2200 pcs/hour（length less than 100MM)

Terminal press power: 2.0T

Air pressure: 5-6kg/cm2 more (need stable clean and dry air)

Electric power: 220V

Related power: 0.75KW

Detect:

1：terminal 2：wire 3: crimp 4：air detect
